/Untitled-497.png)

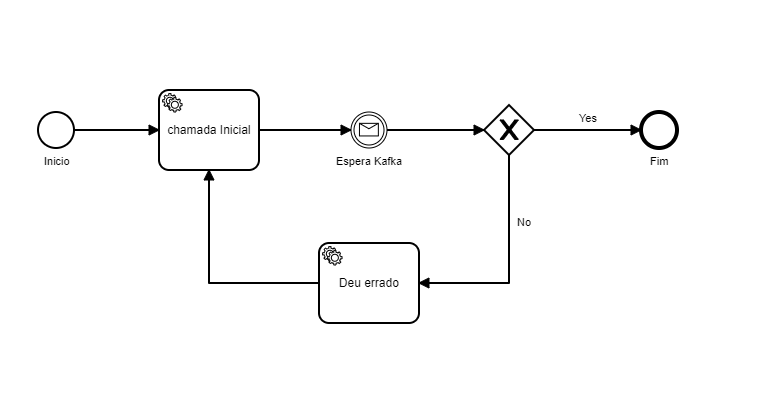

BPMN XML:
<?xml version="1.0" encoding="UTF-8"?>
<bpmn:definitions xmlns:bpmn="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:zeebe="http://camunda.org/schema/zeebe/1.0" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" id="Definitions_04x34d3" targetNamespace="http://bpmn.io/schema/bpmn" exporter="Zeebe Modeler" exporterVersion="0.9.1">
<bpmn:process id="Process_0nh7u74" isExecutable="true">
<bpmn:startEvent id="StartEvent_1" name="Inicio">
<bpmn:outgoing>Flow_16y96fn</bpmn:outgoing>
</bpmn:startEvent>
<bpmn:intermediateCatchEvent id="Event_1dsb4ha" name="Espera Kafka">
<bpmn:incoming>Flow_14q1xuv</bpmn:incoming>
<bpmn:outgoing>Flow_0qsq477</bpmn:outgoing>
<bpmn:messageEventDefinition id="MessageEventDefinition_0udvotg" messageRef="Message_116lh4l" />
</bpmn:intermediateCatchEvent>
<bpmn:sequenceFlow id="Flow_16y96fn" sourceRef="StartEvent_1" targetRef="Activity_0o754b8" />
<bpmn:sequenceFlow id="Flow_14q1xuv" sourceRef="Activity_0o754b8" targetRef="Event_1dsb4ha" />
<bpmn:exclusiveGateway id="Gateway_1nqrff7">
<bpmn:incoming>Flow_0qsq477</bpmn:incoming>
<bpmn:outgoing>Flow_1uvfife</bpmn:outgoing>
<bpmn:outgoing>Flow_0tnh174</bpmn:outgoing>
</bpmn:exclusiveGateway>
<bpmn:sequenceFlow id="Flow_0qsq477" sourceRef="Event_1dsb4ha" targetRef="Gateway_1nqrff7" />
<bpmn:sequenceFlow id="Flow_1uvfife" name="No" sourceRef="Gateway_1nqrff7" targetRef="Activity_0t3nk15">
<bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">=resp=false</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:sequenceFlow id="Flow_1tkfu0a" sourceRef="Activity_0t3nk15" targetRef="Activity_0o754b8" />
<bpmn:endEvent id="Event_0vybsz4" name="Fim">
<bpmn:incoming>Flow_0tnh174</bpmn:incoming>
</bpmn:endEvent>
<bpmn:sequenceFlow id="Flow_0tnh174" name="Yes" sourceRef="Gateway_1nqrff7" targetRef="Event_0vybsz4">
<bpmn:conditionExpression xsi:type="bpmn:tFormalExpression">=resp=true</bpmn:conditionExpression>
</bpmn:sequenceFlow>
<bpmn:serviceTask id="Activity_0o754b8" name="chamada Inicial">
<bpmn:extensionElements>
<zeebe:taskHeaders>
<zeebe:header key="kafka-topic" value="zbChamadaInicial" />
</zeebe:taskHeaders>
<zeebe:taskDefinition type="chamadaInicial" retries="1" />
</bpmn:extensionElements>
<bpmn:incoming>Flow_16y96fn</bpmn:incoming>
<bpmn:incoming>Flow_1tkfu0a</bpmn:incoming>
<bpmn:outgoing>Flow_14q1xuv</bpmn:outgoing>
</bpmn:serviceTask>
<bpmn:serviceTask id="Activity_0t3nk15" name="Deu errado">
<bpmn:extensionElements>
<zeebe:taskDefinition type="deuErrado" retries="1" />
</bpmn:extensionElements>
<bpmn:incoming>Flow_1uvfife</bpmn:incoming>
<bpmn:outgoing>Flow_1tkfu0a</bpmn:outgoing>
</bpmn:serviceTask>
</bpmn:process>
<bpmn:message id="Message_116lh4l" name="callResp">
<bpmn:extensionElements>
<zeebe:subscription correlationKey="=pocId" />
</bpmn:extensionElements>
</bpmn:message>
<bpmndi:BPMNDiagram id="BPMNDiagram_1">
<bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="Process_0nh7u74">
<bpmndi:BPMNEdge id="Flow_0tnh174_di" bpmnElement="Flow_0tnh174">
<di:waypoint x="675" y="117" />
<di:waypoint x="782" y="117" />
<bpmndi:BPMNLabel>
<dc:Bounds x="720" y="99" width="18" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_1tkfu0a_di" bpmnElement="Flow_1tkfu0a">
<di:waypoint x="460" y="270" />
<di:waypoint x="350" y="270" />
<di:waypoint x="350" y="157" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_1uvfife_di" bpmnElement="Flow_1uvfife">
<di:waypoint x="650" y="142" />
<di:waypoint x="650" y="270" />
<di:waypoint x="560" y="270" />
<bpmndi:BPMNLabel>
<dc:Bounds x="658" y="203" width="15" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_0qsq477_di" bpmnElement="Flow_0qsq477">
<di:waypoint x="528" y="117" />
<di:waypoint x="625" y="117" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_14q1xuv_di" bpmnElement="Flow_14q1xuv">
<di:waypoint x="400" y="117" />
<di:waypoint x="492" y="117" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="Flow_16y96fn_di" bpmnElement="Flow_16y96fn">
<di:waypoint x="215" y="117" />
<di:waypoint x="300" y="117" />
</bpmndi:BPMNEdge>
<bpmndi:BPMNShape id="_BPMNShape_StartEvent_2" bpmnElement="StartEvent_1">
<dc:Bounds x="179" y="99" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="185" y="142" width="26" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Event_1qz9ubj_di" bpmnElement="Event_1dsb4ha">
<dc:Bounds x="492" y="99" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="477" y="142" width="67" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Gateway_1nqrff7_di" bpmnElement="Gateway_1nqrff7" isMarkerVisible="true">
<dc:Bounds x="625" y="92" width="50" height="50" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Event_0vybsz4_di" bpmnElement="Event_0vybsz4">
<dc:Bounds x="782" y="99" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="791" y="142" width="19" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Activity_171sc5y_di" bpmnElement="Activity_0o754b8">
<dc:Bounds x="300" y="77" width="100" height="80" />
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="Activity_0y5n7l3_di" bpmnElement="Activity_0t3nk15">
<dc:Bounds x="460" y="230" width="100" height="80" />
</bpmndi:BPMNShape>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</bpmn:definitions>SINK JSON:
{
"name": "poc-sink",
"config": {
"connector.class": "io.zeebe.kafka.connect.ZeebeSinkConnector",
"tasks.max": "1",
"key.converter": "org.apache.kafka.connect.storage.StringConverter",
"value.converter": "org.apache.kafka.connect.storage.StringConverter",
"topics": "pocConfirm",
"errors.tolerance": "all",
"errors.deadletterqueue.topic.name":"deadletterqueue",
"errors.deadletterqueue.topic.replication.factor": 1,
"zeebe.client.broker.contactPoint": "cluster-1-zeebe-gateway.zeebe.svc.cluster.local:26500",
"zeebe.client.requestTimeout": "10000",
"zeebe.client.security.plaintext": true,
"message.path.messageName": "$.eventType",
"message.path.correlationKey": "$.pocId",
"message.path.variables": "$.['pocId','resp']"
}
}SOURCE JSON:
{
"name": "poc-source",
"config": {
"zeebe.client.job.worker": "kafka-connector",
"zeebe.client.job.pollinterval": "2000",
"name": "poc-source",
"connector.class": "io.zeebe.kafka.connect.ZeebeSourceConnector",
"tasks.max": "1",
"key.converter": "org.apache.kafka.connect.storage.StringConverter",
"value.converter": "org.apache.kafka.connect.storage.StringConverter",
"zeebe.client.broker.contactPoint": "cluster-1-zeebe-gateway.zeebe.svc.cluster.local:26500",
"zeebe.client.requestTimeout": "10000",
"zeebe.client.security.plaintext": "true",
"zeebe.client.worker.name": "kafka-connector",
"zeebe.client.worker.maxJobsActive": "1000",
"zeebe.client.job.timeout": "5000",
"job.types": "chamadaInicial",
"job.header.topics": "kafka-topic"
}
}Simular worker:
zbctl create worker --handler cat --maxJobsActive 1 deuErrado --insecureCriar instancia:
zbctl create instance --variables "{\"pocId\": 64}" Process_0nh7u74 --insecureMensagem para Kafka (via producer):
{"eventType":"callResp", "pocId":65,"resp":false}O QUE NÃO ALTERAR:
No sink connector:
No source connector:
Na mensagem:
