When Microsoft implemented PatchGuard, it was understood that this would remove functionality from some programs (such as AV). The compromise that was implemented was the use of what are called kernel callbacks.
The way a kernel callback works is that a driver can register a “callback” in its code for any supported action and receive a pre or post notification when that certain action is performed. Callbacks will not perform any modification to the underlying Windows Kernel.
A common implementation of these callbacks is PsSetCreateProcessNotifyRoutine(Ex). When a driver implements this callback function, anytime a new process is created, this callback routine is called and sends a notification to the driver which requested it. The driver can then execute its own functions accordingly.
Remember, this can be a pre or post notification. If a security appliance receives a pre notification that process is being created, it can check if that is a known bad file and give the EDR driver a notification to prevent the process from occurring. Similarly, if the risk is unknown, it can take the post notification and record the process actions for further analysis and correlation later.

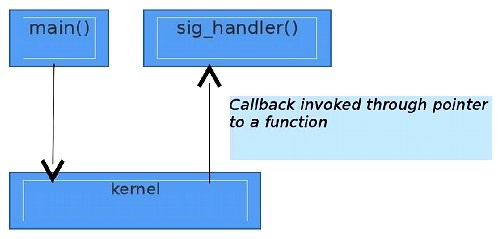

The simplest visual I could find for this is from OpenSourceForU. When a certain action occurs, the callback sends a notification to the specified kernel driver, which then sends instructions back to the user land application.
